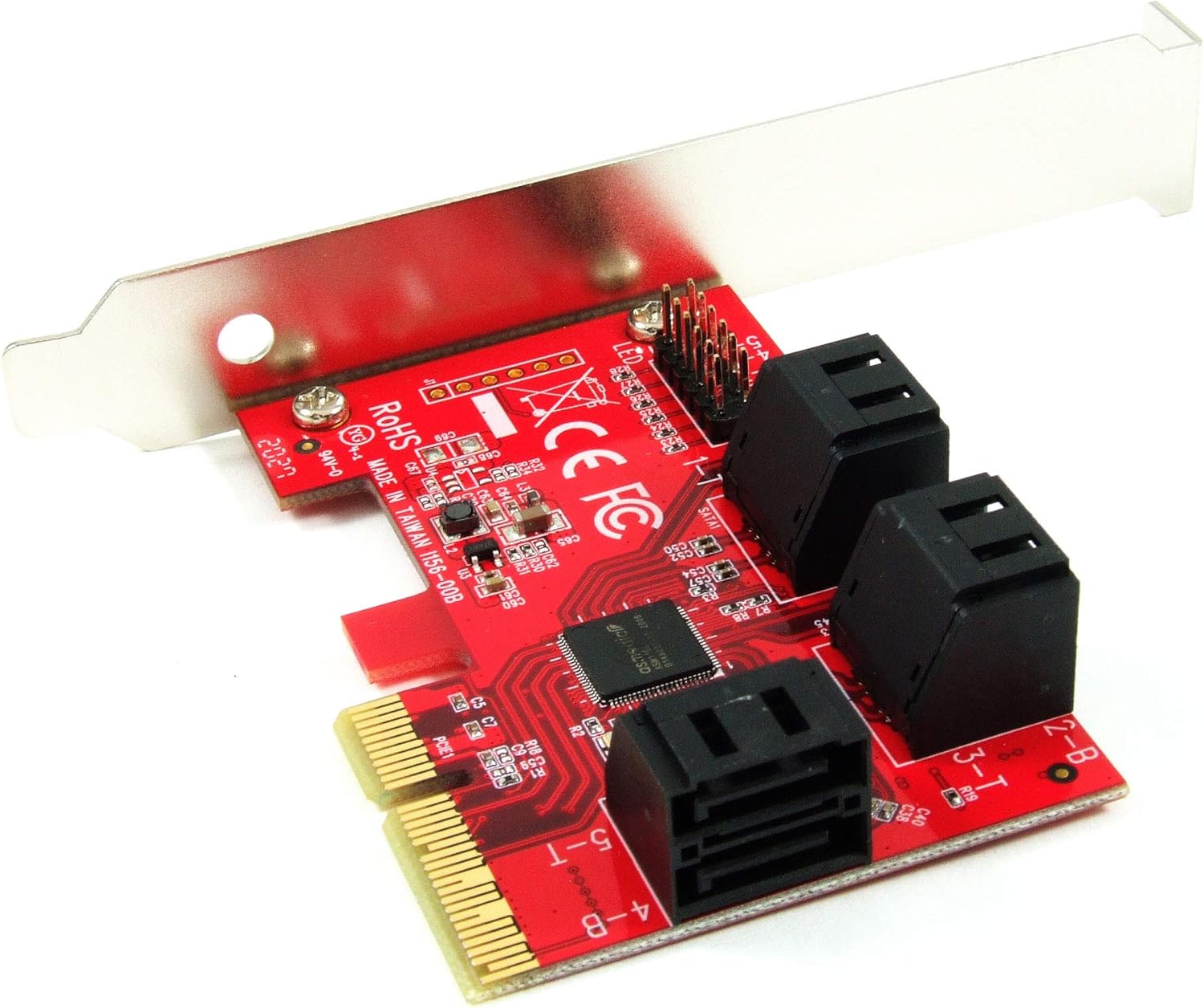

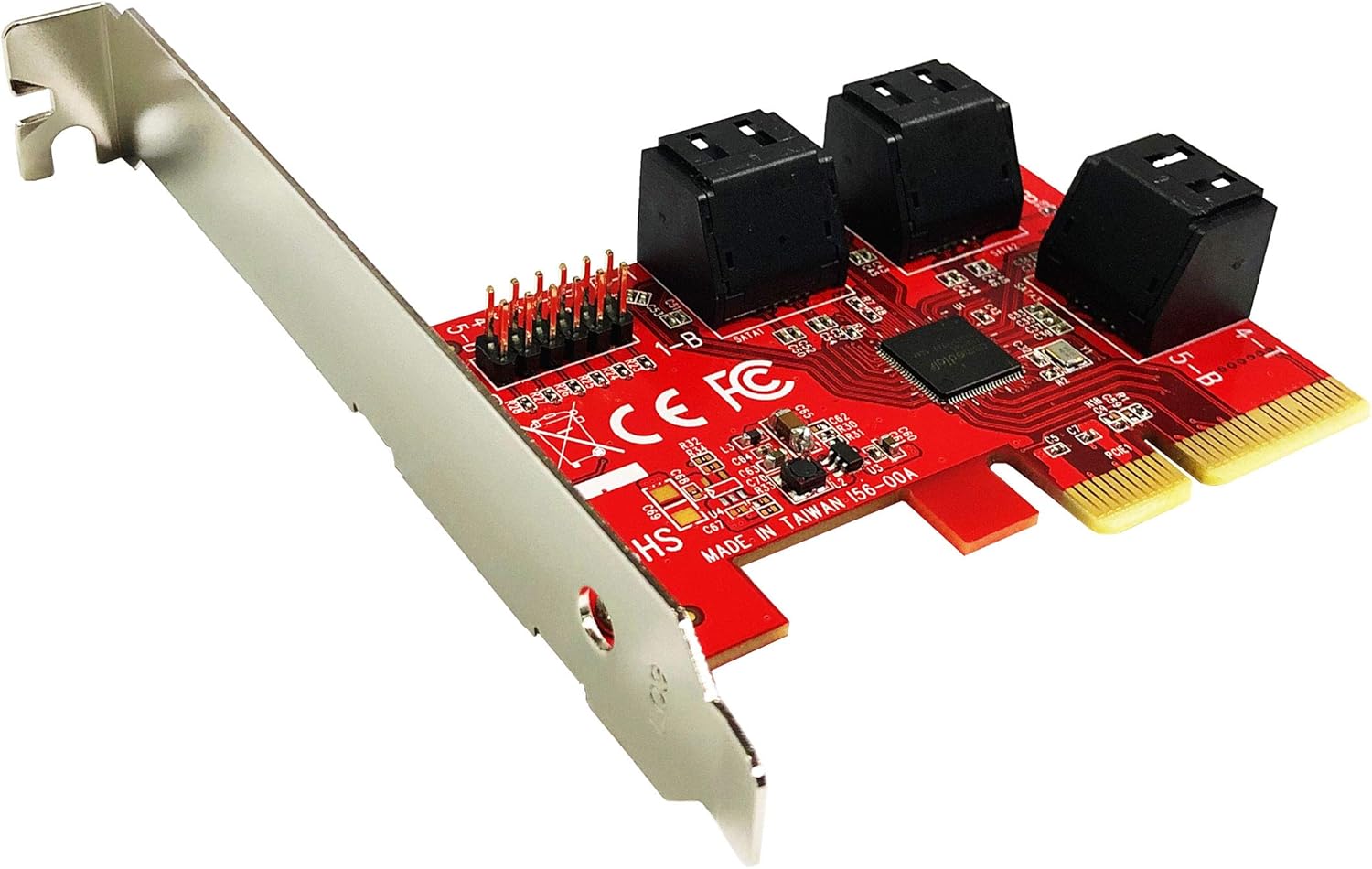

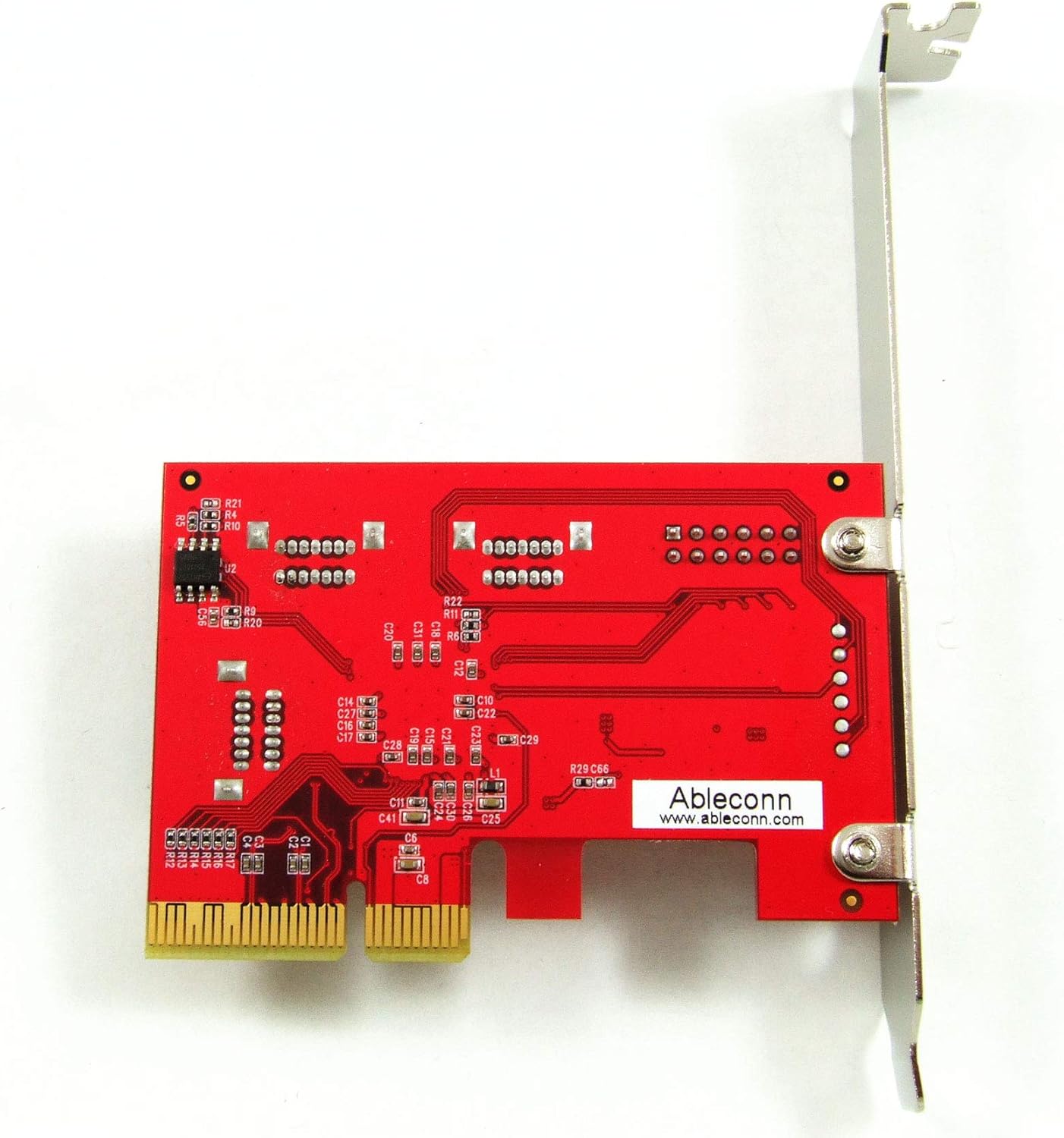

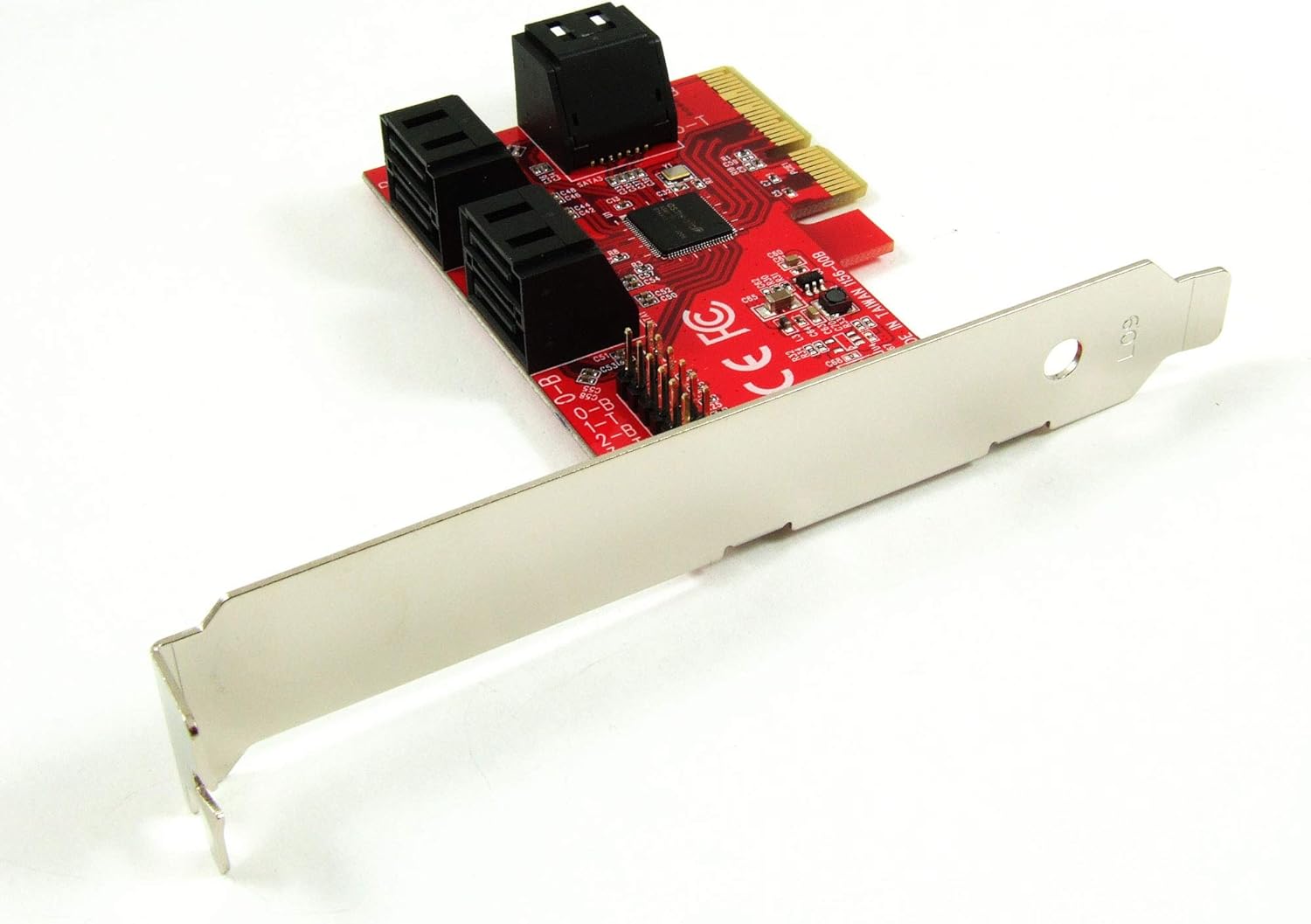

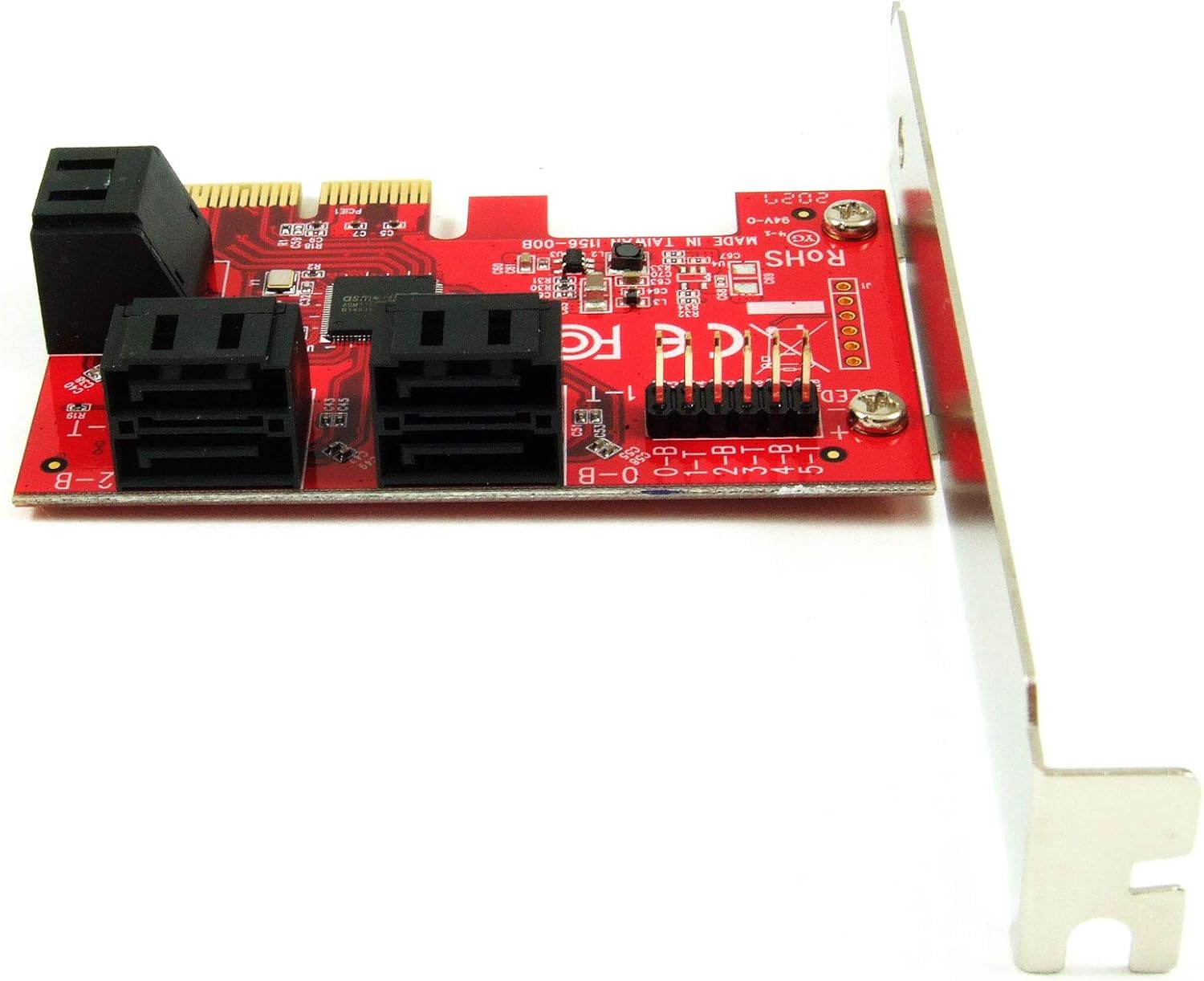

6-Port SATA 6G PCI Express x4 Host Adapter Card S9299
6-Port SATA 6G PCI Express x4 Host Adapter Card S9299
6 SATA III ports with transfer speeds up to 6.0Gbps; backward compatible with SATA I/II at 1.5/3.0Gbps
PCIe x4 Lanes board. Support both UEFI and Legacy Boot ROM. Work with UEFI or Legacy BIOS motherboards.
Support SATA Command-based Port Multiplier switching and up to 30 SATA drives via six 5-port PM connections.
No driver installation is required on Windows 10/8/7/Vista, Server 2008 and later, Linux, Mac OS 10.x and later.
Fully RoHS compliant. Made in Taiwan.
Add six SATA 6G ports with up to 6 Gbps data rates to your UEFI or Legacy computer.
Features
* Connector:
- 6 x SATA (7 pin; DATA) Plug
- PCI Express x4 Male
* Chipset: ASMedia ASM1166
* Software:
- No driver installation is required on Windows 10/8/7/Vista, Server 2008 and later; Linux; Mac 10.x and later. The AHCI drivers are natively built-in on most Operating Systems
- Boot ROM on board support OS Booting for Windows and Linux
- Combo UEFI & Legacy (CSM) Boot ROM supports both UEFI and Legacy BIOS modes
* Data transfer rate:
- Up to 6 Gbps
* Number of Ports That Support Port Multiplier: 6
* Number of Drives Supported Through Port Multiplier: 1 to 5
* System Requirement:
- An empty PCIe x4, x8, or x16 slot.
* Supports PCIe 3.0 and PCIe 2.0 motherboards
* Compliant with PCI Express 3.0
* Fully compliant with Serial ATA 3.2 and AHCI rev 1.4
* Supports SATA Port Multiplier, HDD, SSD, Optical Drive and Blu-Ray Drive
* Supports ATA and ATAPI commands
* Supports SATA Command-based Port Multiplier and up to 30 SATA drives via 6x 5-port PMs
* Supports SATA Hot-plug, and Native Command Queuing (NCQ)
* Low Profile PCIe form factor card on a regular size bracket with an additional Low Profile bracket included

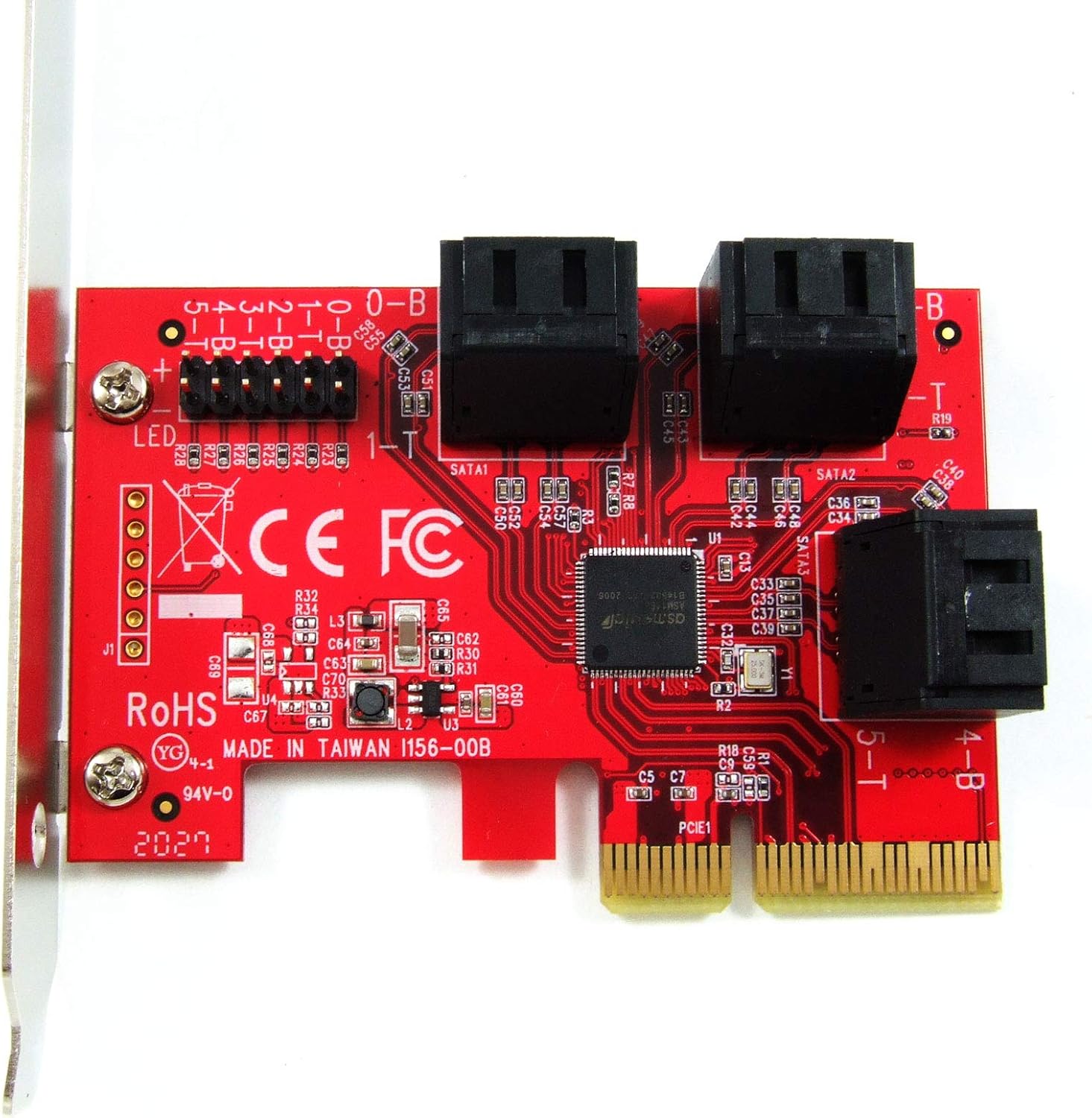

* Pin headers on board for Device LED connection
* Fully RoHS compliant.
* Made in Taiwan
Package Contents
* 6-Port SATA 6G AHCI PCI Express Host Adapter Card

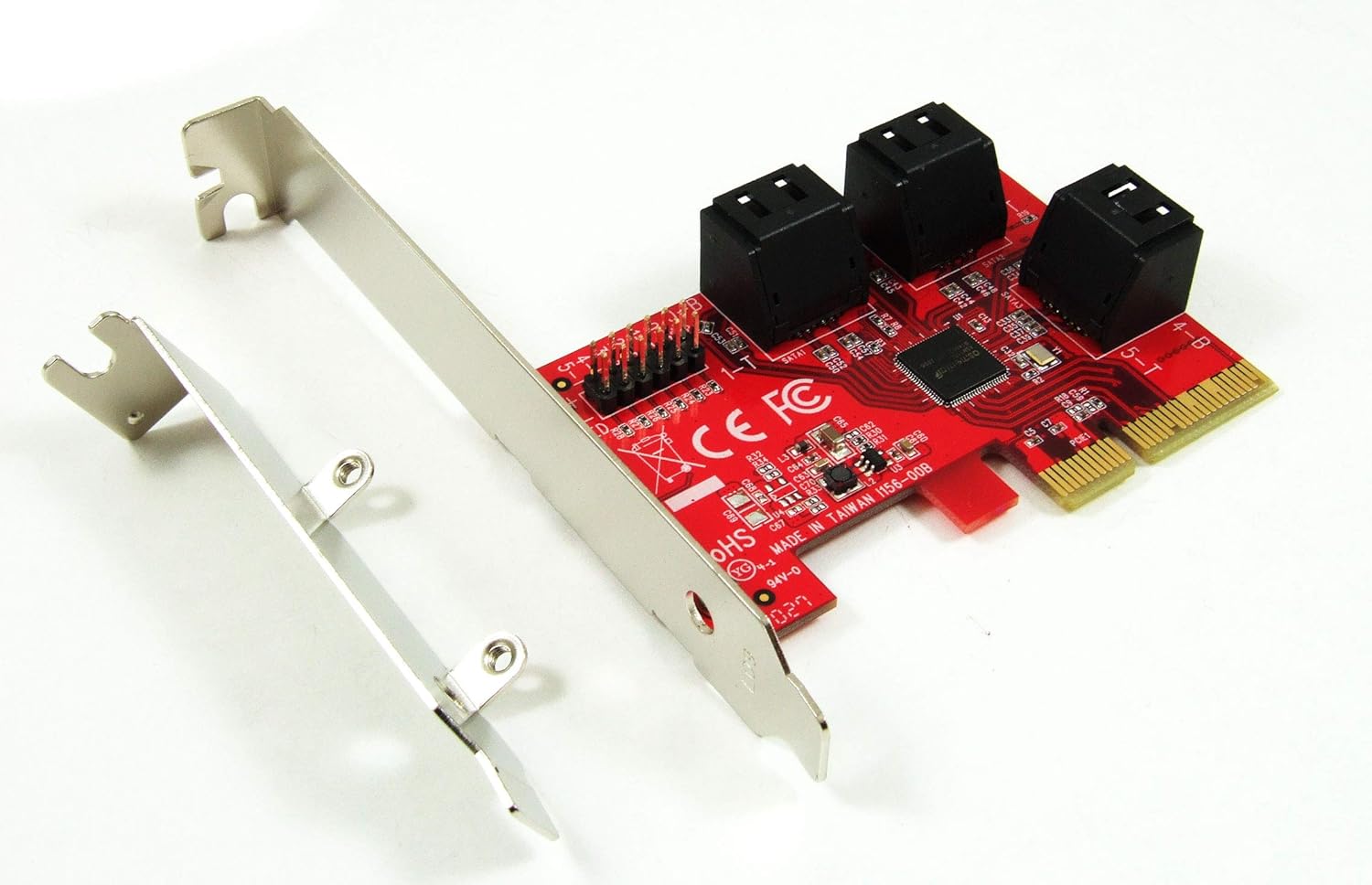

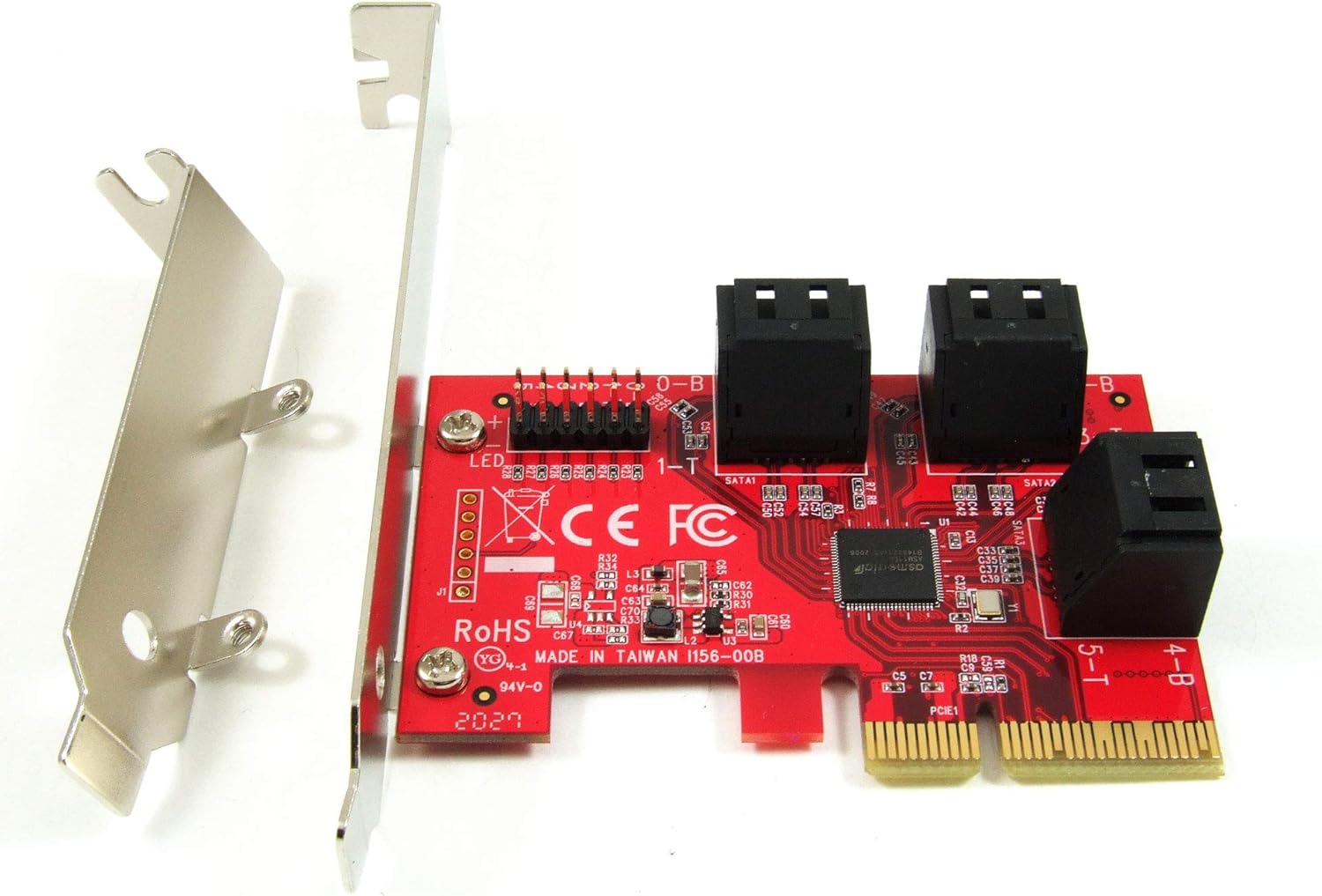

* One (1) low profile PCIe bracket
* Quick Installation Guide
