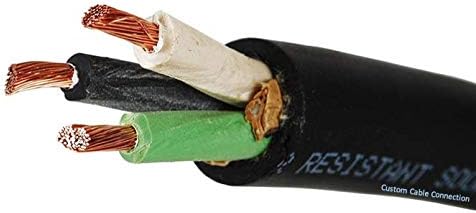

16/3 SOOW Portable Power Cable - 100 Foot Roll Q55738
Sale price
$16.99
Regular price $77.54
Skip to product information
SOOW APPLICATIONS: recommended for use as portable electrical power and portable control wire cable. With its flexibility and resistance to the effects of abrasion, chemicals, weather and ozone, SOOW Portable Cord is excellent for heavy-duty cable service applications. SOOW Portable Cord can also be used for ground tests and motor leads.
EXCELLENT OIL AND MOISTURE RESISTANCE: SOOW Flexible Portable Cord is resistant to oil and moisture. It has good tensile strength, elongation and aging characteristics. SOOW Flexible Portable cable has high flexibility, excellent abrasion resistance and is both water and sunlight resistant.
SOOW IS RATED TO 600 VOLTS: for indoor and outdoor use. Our SOOW cable has a temperature range of -40°C to 90°C making it an excellent choice for mitigating outdoor factors that would otherwise alter the performance of wire or cable. SOOW Portable Cord is UL-approved for permanent installation is often used in new construction and other applications where the wire will not need to be removed.
FULLY ANNEALED STRANDED BARE COPPER: 16 AWG fully annealed stranded bare copper conductors per ASTM B-174. Insulated conductors (black, green, white) are cabled with fillers as necessary to make round, a separator is applied over the assembly. Insulation Thickness 0.76 mm / 0.030 inches. Outside Cable Diameter 0.390 inches. The overall jacket of this cable is a black, oil-resistant thermoset compound per UL 62
CUSTOM CABLE CONNECTION QUALITY: Here at Custom Cable Connection, we are family owned and have been in business since 2002. We have made it our mission to provide high-quality audio, video, network, and RF cable assemblies as well as OEM products for our loyal customers. We manufacture in-house as often as possible with US-sourced products.
Tools & Home Improvement Electrical Electrical Wire
16/3 SOOW Portable Power Cable - 100 Foot Roll Q55738
Sale price
$16.99
Regular price $77.54
Shipping calculated at checkout.
SOOW APPLICATIONS: recommended for use as portable electrical power and portable control wire cable. With its flexibility and resistance to the effects of abrasion, chemicals, weather and ozone, SOOW Portable Cord is excellent for heavy-duty cable service applications. SOOW Portable Cord can also be used for ground tests and motor leads.
EXCELLENT OIL AND MOISTURE RESISTANCE: SOOW Flexible Portable Cord is resistant to oil and moisture. It has good tensile strength, elongation and aging characteristics. SOOW Flexible Portable cable has high flexibility, excellent abrasion resistance and is both water and sunlight resistant.
SOOW IS RATED TO 600 VOLTS: for indoor and outdoor use. Our SOOW cable has a temperature range of -40°C to 90°C making it an excellent choice for mitigating outdoor factors that would otherwise alter the performance of wire or cable. SOOW Portable Cord is UL-approved for permanent installation is often used in new construction and other applications where the wire will not need to be removed.
FULLY ANNEALED STRANDED BARE COPPER: 16 AWG fully annealed stranded bare copper conductors per ASTM B-174. Insulated conductors (black, green, white) are cabled with fillers as necessary to make round, a separator is applied over the assembly. Insulation Thickness 0.76 mm / 0.030 inches. Outside Cable Diameter 0.390 inches. The overall jacket of this cable is a black, oil-resistant thermoset compound per UL 62
CUSTOM CABLE CONNECTION QUALITY: Here at Custom Cable Connection, we are family owned and have been in business since 2002. We have made it our mission to provide high-quality audio, video, network, and RF cable assemblies as well as OEM products for our loyal customers. We manufacture in-house as often as possible with US-sourced products.
| 10/3 SOOW Cable | 12/3 SOOW Cable | 14/3 SOOW Cable | 16/3 SOOW Cable | 12/5 SOOW Cable | 18/5 SOOW Cable | |
|---|---|---|---|---|---|---|
| GAUGE | 10 | 12 | 14 | 16 | 12 | 18 |
| # OF CONDUCTORS | 3 | 2 | 3 | 3 | 5 | 5 |
| CONDUCTOR COLORS | GREEN, BLACK, WHITE | BLACK, WHITE | GREEN, BLACK, WHITE | GREEN, BLACK, WHITE | GREEN, BLACK, WHITE, RED, ORANGE | GREEN, BLACK, WHITE, RED, ORANGE |
| AMPS PER CONDUCTOR | 25 | 20 | 15 | 10 | 16 | 5.6 |
| # OF STRANDS | 105 | 65 | 41 | 26 | 65 | 16 |
| OUTSIDE DIAMETER | .660' | .595' | .535' | .390' | .715' | .465' |
| MATERIAL | COPPER | COPPER | COPPER | COPPER | COPPER | COPPER |
| VOLTAGE | 600 | 600 | 600 | 600 | 600 | 600 |
| AVAILABLE LENGTHS | 25FT, 50FT, 100FT, 250FT | 25FT, 50FT, 100FT, 250FT | 50FT, 100FT, 250FT | 25FT, 50FT, 100FT, 250FT | 25FT, 50FT, 100FT, 250FT | 25FT, 50FT, 100FT, 250FT |
