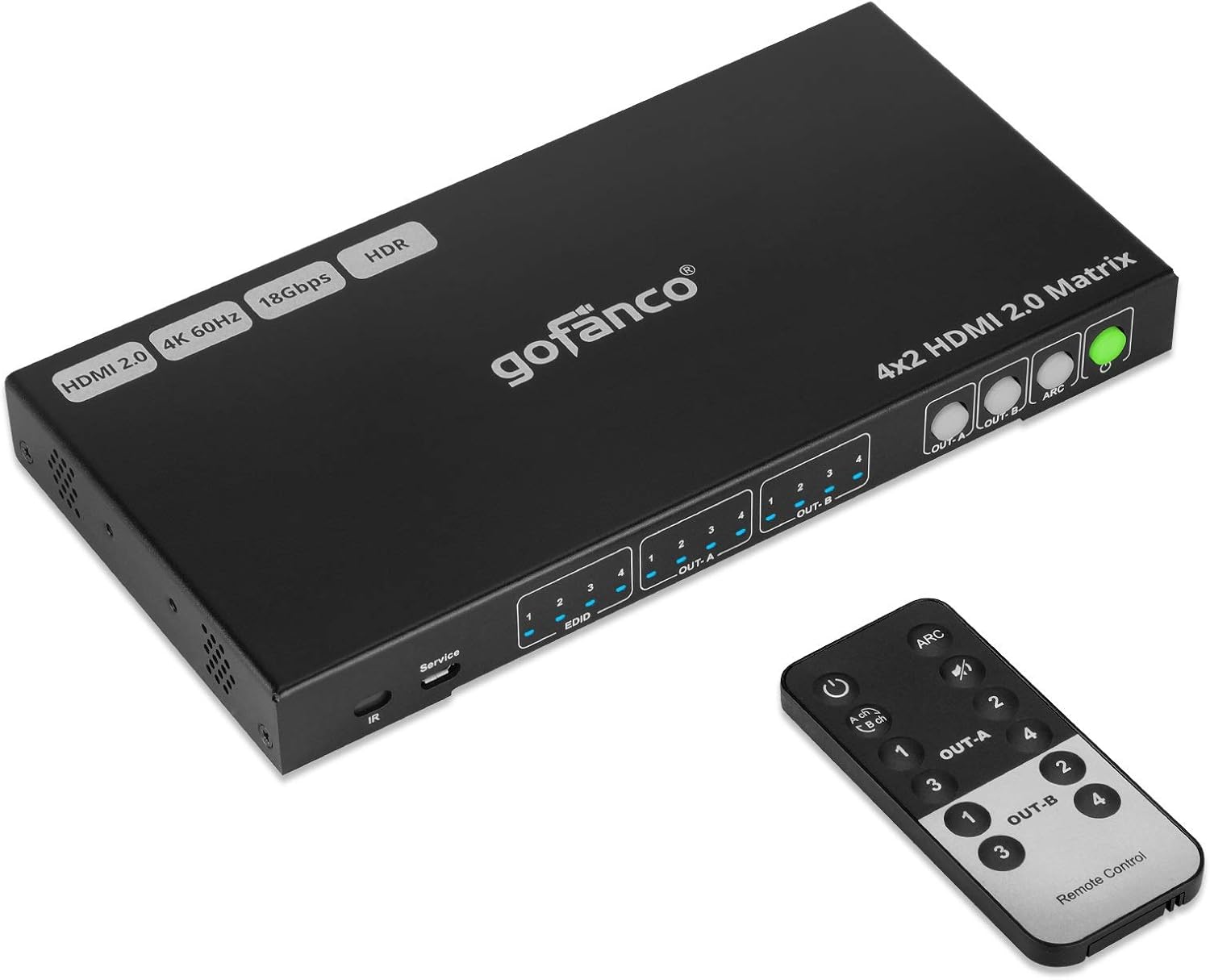

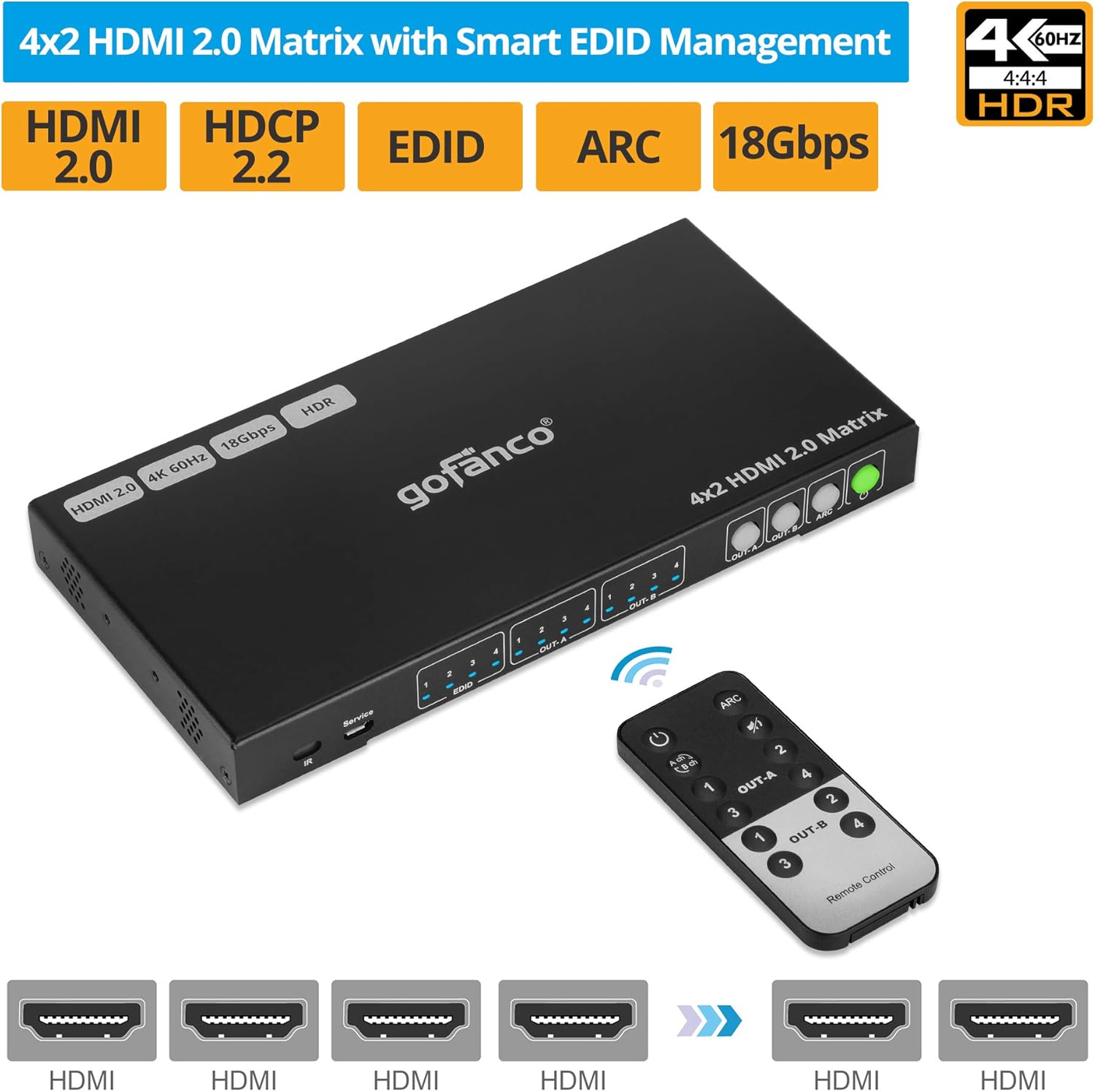

4x2 HDMI Matrix Switch 4K 60Hz HDR HDMI 2.0 HDCP 2.2 EDID RS232 Web GUI IR ARC Toslink 4 in 2 Out Video Switcher Splitter U870115
Sale price
$21.50
Regular price $71.27
Skip to product information

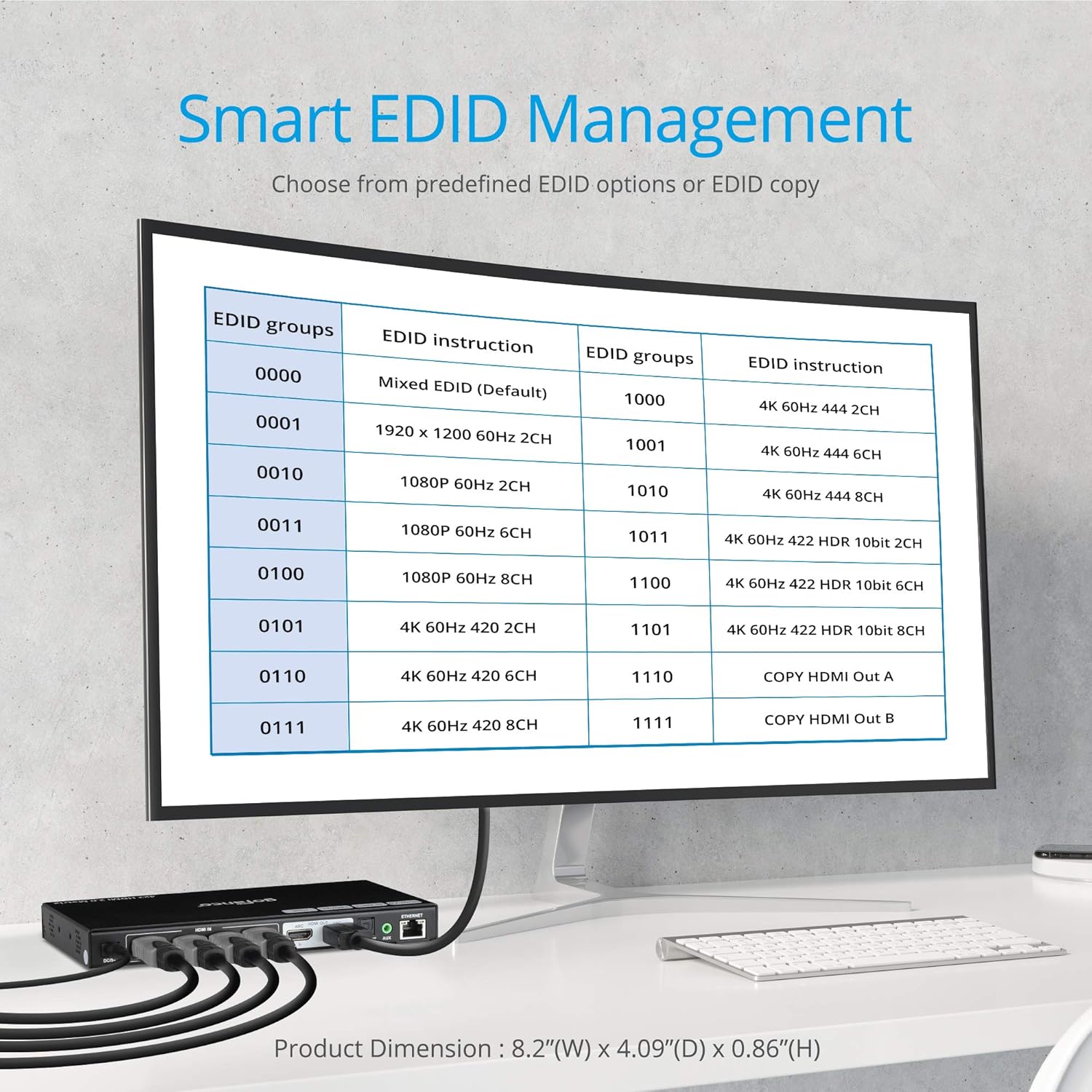

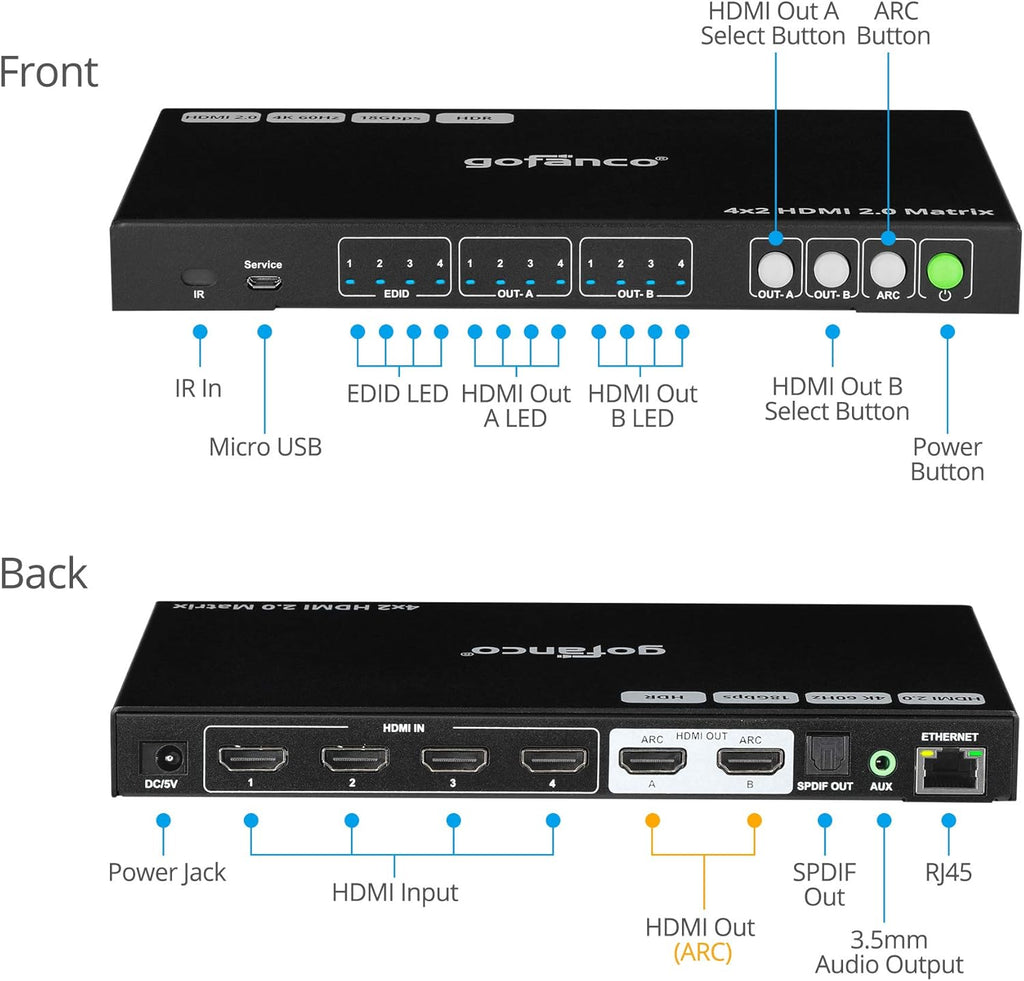

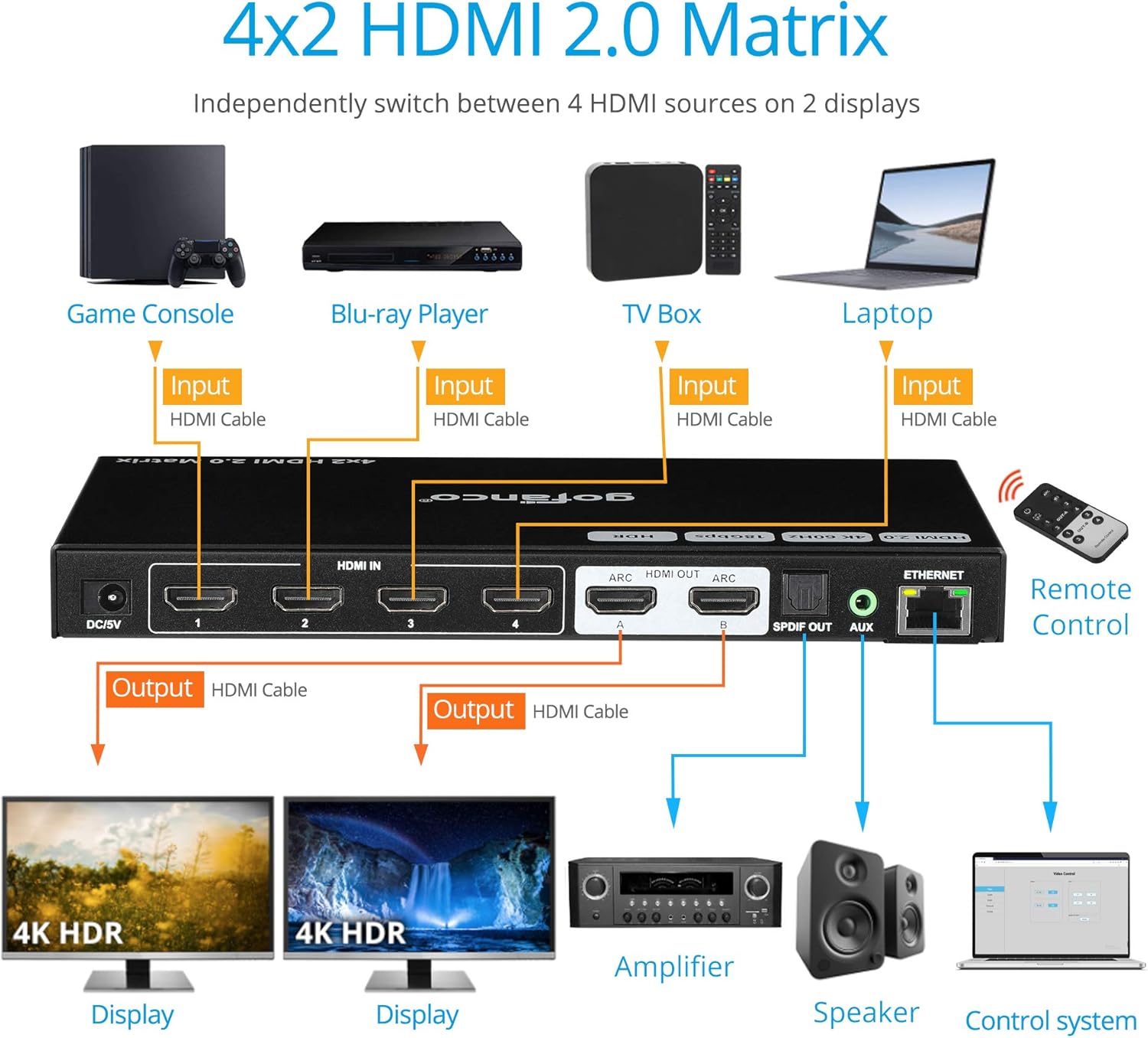

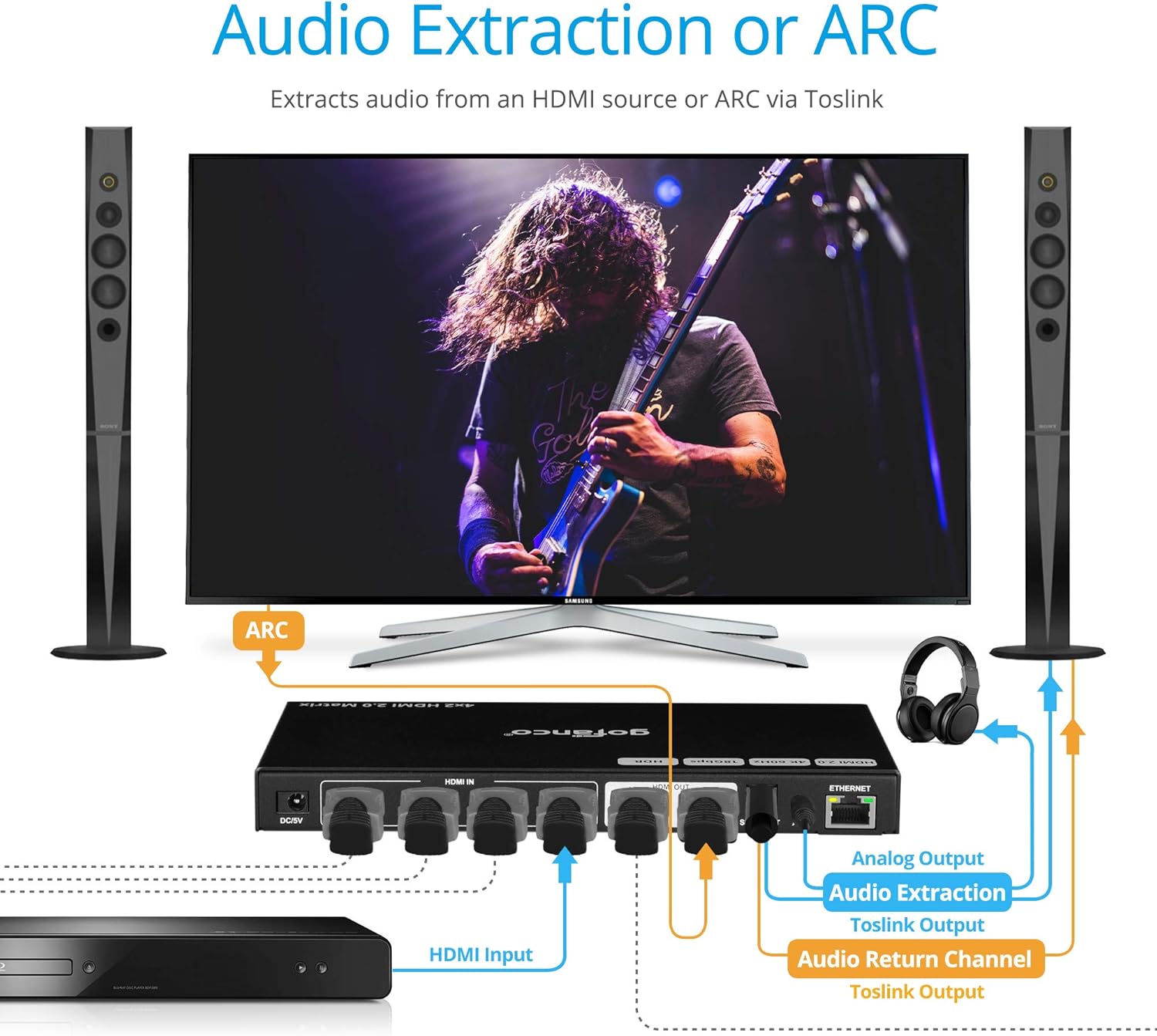

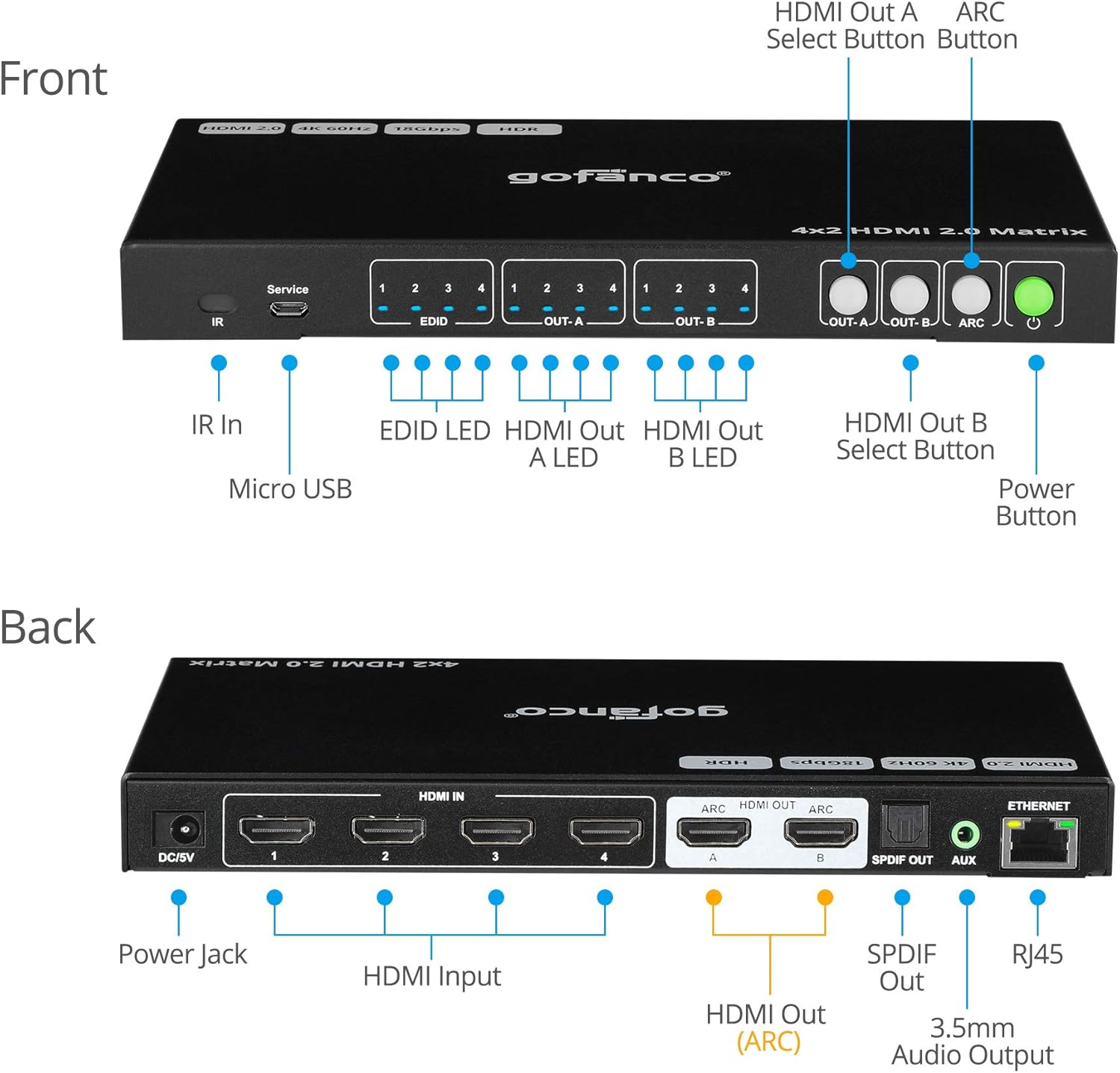

✔ 4x2 HDMI 2.0 Matrix – Connect up to four HDMI source devices and independently distribute any source to any of the two HDMI displays. Supports up to 4K @60Hz YUV 4:4:4 8-bit, HDR (at 4K @60Hz YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2, 18Gbps. Supports up to 7.1 digital HDMI audio✔ VIDEO SCALING & EDID Management – A 4K video source can simultaneously display 4K content to a 4K monitor and 1080p to a 1080p monitor via downscaling. EDID learning from connected displays or choose from a wide selection of pre-programmed EDID settings✔ ARC & AUDIO EXTRACTOR – Extracts audio to Toslink & Stereo outputs from either the HDMI source or ARC-enabled display. Supports TV power on/standby CEC function. * Note: Stereo output is muted when ARC is activated✔ MULTIPLE CONTROL OPTIONS – 1) Push buttons, 2) IR remote, 3) Web GUI, & 4) Command control. Firmware upgradable for expanded compatibility✔ SIMPLE INSTALLATION – No software is required. Surface mountable metal housing provides durability and higher level of RF/EMI shielding; FCC, CE & RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in the buy box and select "Ask a Question"
4x2 HDMI Matrix Switch 4K 60Hz HDR HDMI 2.0 HDCP 2.2 EDID RS232 Web GUI IR ARC Toslink 4 in 2 Out Video Switcher Splitter U870115
Sale price
$21.50
Regular price $71.27
Shipping calculated at checkout.
| Matrix44 | PRO-Matrix44-SC | Matrix44-HDBT | Matrix44-HD20 | Matrix42-HD20 | Matrix88 | |
|---|---|---|---|---|---|---|
| Input x Output | 4x4 | 4x4 | 4x4 | 4x4 | 4x2 | 8x8 |
| Max Resolution | 4K @30Hz | 4K @60Hz 4:4:4 | 4K @60Hz 4:2:0 | 4K @60Hz 4:4:4 | 4K @60Hz 4:4:4 | 1080p @60Hz |
| HDMI/HDCP | HDMI 1.4 / HDCP 2.2 | HDMI 2.0 / HDCP 2.2 | HDMI 1.4 / HDCP 2.2 | HDMI 2.0 / HDCP 2.2 | HDMI 2.0 / HDCP 2.2 | HDMI 1.3 / HDCP 1.4 |
| Extender | No | No | 4K @60Hz (4:2:0) & 4K @30Hz up to 130ft (40m), 1080p/3D up to 230ft (70m) | No | No | No |
| Mixed Resolution Output | None | 4K & 1080p | None | 4K & 1080p | None | None |
| Switch Methods | Front Panel Buttons / IR Remote / RS-232 Control | Alexa Echo Voice / Front Panel Buttons / IR Remote / RS-232 / GUI IP Control / Control4* | Front Panel Buttons / IR Remote / RS-232 / GUI IP Control | Front Panel Buttons / IR Remote / RS-232 / GUI IP Control | Front Panel Buttons / IR Remote / RS-232 / GUI IP Control | Front Panel Buttons / IR Remote / RS-232 Control / Web GUI |
| Bandwidth | 10.2 Gbps | 18 Gbps | 10.2 Gbps | 18 Gbps | 18 Gbps | 10.2 Gbps |
| HDR | No | Yes | No | Yes | Yes | No |
| RS-232 Control | Yes | Yes | Yes | Yes | Yes | Yes |
| EDID | Yes | Yes | Yes | Yes | Yes | Yes |
