PCI Express TV Tuner Card R2556
PCI Express TV Tuner Card R2556
Four Tuners on a half height PCI Express board.Built-in cable TV splitter allows you to make one connection to cable TV.
For use in both full and half height PC's. Supports four tuner picture-in-picture
Watch, pause and record up to four ATSC or clear QAM HD TV programs at the same time
Note-if your pc is not fast enough, you might see jerky live tv video but tv recordings will be fine
Please Note: Kindly refer the User Manual before use..Not all cable TV networks send clear QAM channels. Please check with your local cable operator for the availability of clear QAM digital cable TV

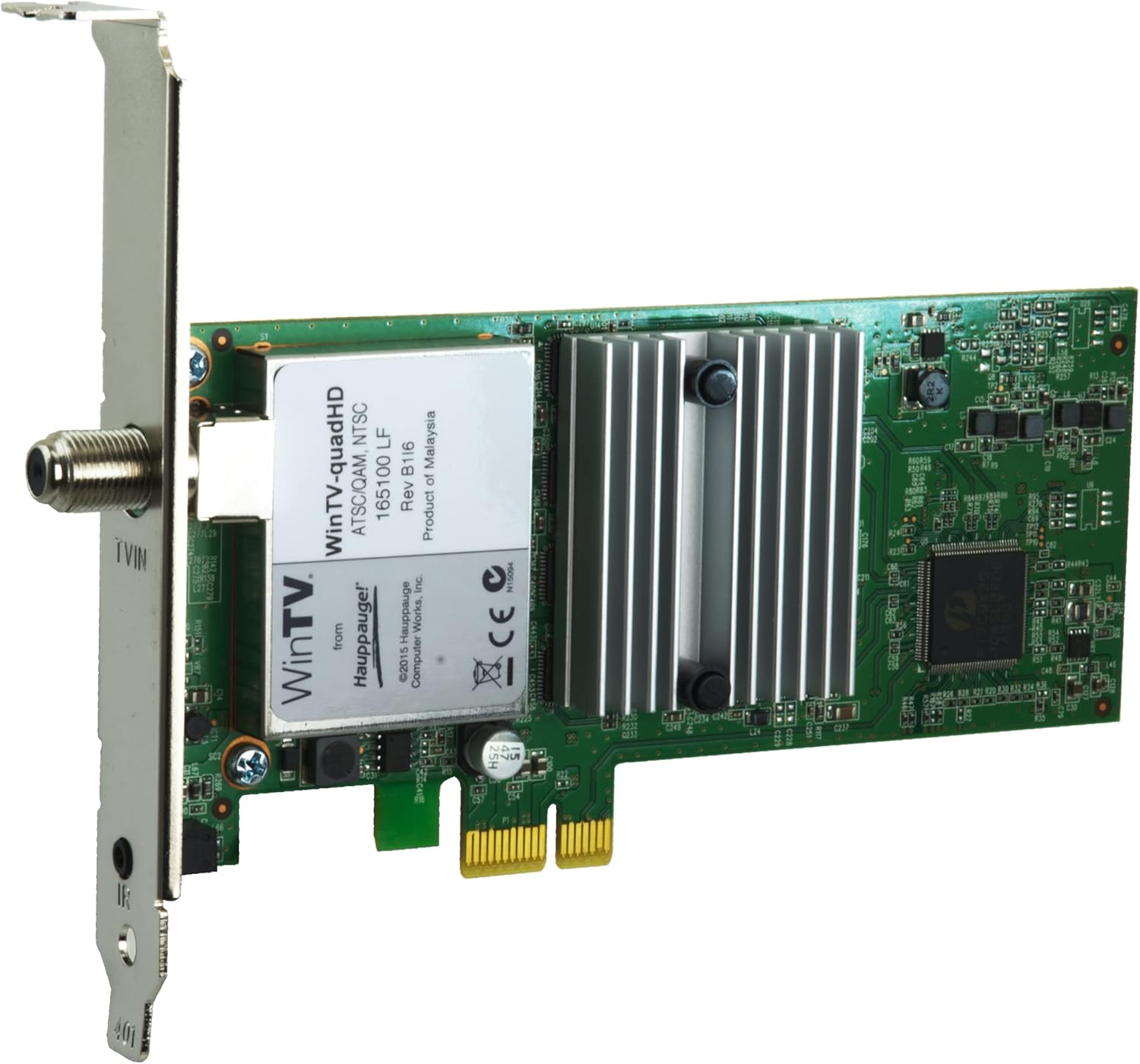

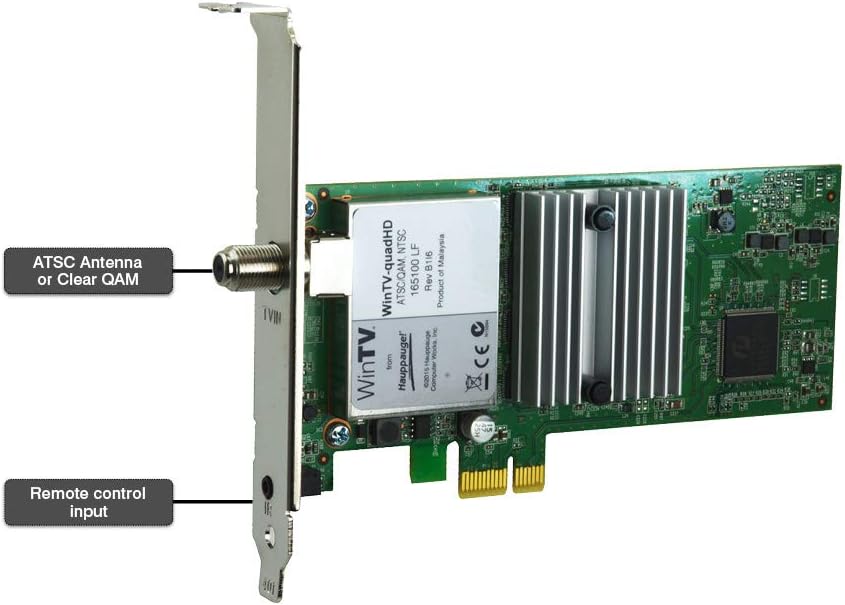

WinTV-quadHD has four tuners on a half height PCI Express board. WinTV-quadHD will fit in both full and half height PC's, and can plug into PCI Express x1 or x16 slots. Watch, pause or record up to four ATSC or clear QAM HD TV programs at the same time. The WinTV-quadHD is seen as 4 tuners so you can watch one TV program or record up to 4 TV programs at the same time. Contents: Includes the WinTV-quadHD board, Hauppauge remote control, IR receiver cable, QI and Includes activation code for download of WinTV v10 application for Windows. Both half and full height brackets included. Supports four tuner picture-in-picture. Also works with Windows Media Center (included in Windows 7 and optional in Windows 8).
| WinTV-quadHD | WinTV-HVR-2255 MC Kit | WinTV-HVR-2255 | WinTV-HVR-1265 | |
|---|---|---|---|---|
| Model Number | 1609 | 1213 | 1229 | 1196 |
| Bus Type | Half Height PCI Express | Half Height PCI Express | Half Height PCI Express | Half Height PCI Express |
| Number of Tuners | 4 | 2 | 2 | 1 |
| Digital TV Receiver Format | ATSC/QAM | ATSC/QAM | ATSC/QAM | ATSC/QAM |
| Analog TV Format | None | NTSC | NTSC | NTSC |
| MPEG-2 Encoder for Analog TV | None | Dual Hardware MPEG-2 Encoders - up to 6Mbits/sec per Channel | Dual Hardware MPEG-2 Encoders - up to 6Mbits/sec per Channel | None |
| Remote Control | Hauppauge Remote | Media Center Remote | None | Hauppauge Remote |
| A/V Input | None | S-Video, Composite, Left and Right Audio | S-Video, Composite, Left and Right Audio | S-Video,Stereo Audio Jack |
| FM | None | Yes | Yes | Yes |
